Own Your Agents' Memory: Self-Hosted mem9 on AWS

Introduction

Every agent session starts amnesic. You explain your deployment topology to Claude Code on Monday, and on Tuesday Codex asks the same question. You tell one agent that Aurora MySQL cannot run your vector workload, and the next agent cheerfully proposes it. The knowledge that actually compounds — decisions and their rationale, environment quirks, the gotcha that cost you an afternoon — evaporates at the end of every context window.

The obvious fix is a hosted memory product. Point every agent at a SaaS memory API and let it accumulate. That works, and it means your accumulated engineering judgment now lives in someone else's account, under their retention policy, their deletion semantics, and their acquisition risk. For a personal knowledge base that is an odd trade: the more valuable the memory becomes, the worse the dependency gets.

I took the other path. mem9 is an Apache-2.0 agent-memory server (the binary is mnemo-server), and I deployed it into my own AWS account as mem9-on-aws — self-hosted agent memory, shared across every agent I use, on infrastructure I control. This post is about what that constraint actually costs to honor, and the part I found genuinely interesting: different classes of agent worker need structurally different doors into the same store.

What data autonomy actually demands

"Own your data" sounds like a preference. Treated as a hard requirement, it behaves like a design constraint — each demand eliminates the easy answer.

1. Memory content stays in my account. This rules out mem9's own SaaS offering and every hosted memory API. Not because they're untrustworthy, but because the requirement is about custody, not trust.

2. Embeddings are computed in my account too. This is the demand people skip, and it's the one with teeth. Memory content is only half the artifact; the vector is a lossy but very real projection of the same text. Shipping content to a third-party embedding API to avoid running a model is exactly the leak you were trying to prevent.

That constraint immediately collided with reality. Amazon Bedrock's OpenAI-compatible Mantle surface offers Chat Completions and Responses — but no /embeddings endpoint. Bedrock's embedding models exist, but they're reached through InvokeModel, which is not the OpenAI shape mem9 expects. So the choice was to patch mem9's embedding client or to host an OpenAI-shaped embedding service myself. I hosted one: a qwen3-embed sidecar serving Qwen3-Embedding-0.6B as ONNX on localhost, producing 1024-dimensional vectors, baked into the image so it's always warm.

3. Memory is exportable and deletable on demand. This pushes toward a boring, queryable store rather than a proprietary index. mem9 supports a TiDB backend and a PostgreSQL backend, and I wanted Postgres regardless — but the decision was made for me. mem9's TiDB path depends on TiDB-only vector features (VECTOR columns, VEC_COSINE_DISTANCE, and EMBED_TEXT auto-embedding), none of which Aurora MySQL provides. So: Aurora PostgreSQL Serverless v2 with pgvector, where my memories are rows I can SELECT and DELETE with plain SQL.

4. The server is never publicly reachable. No public endpoint, no ALB, no VPC Lattice. The only way in is an authenticated MCP surface — which turns out to be the interesting constraint, because MCP is also exactly how every agent client wants to talk to it.

The architecture that falls out

Those four demands leave surprisingly little room. What emerged is a single-writer Fargate task fronted by an Amazon Bedrock AgentCore Gateway MCP surface:

flowchart TB
    CC[Claude Code] --> FACADE
    CX[Codex] --> FACADE
    KIRO[Kiro CLI] --> FACADE
    SPARK[Gemini Spark] --> FACADE
    QUICK[Amazon Quick desktop] --> BRIDGE[npx mcp-remote]
    BRIDGE --> FACADE
    HOOKS[Ingest hooks - M2M] --> GW
    FACADE[OAuth facade on API Gateway] --> GW[AgentCore Gateway]
    GW --> PROXY[VPC-attached proxy Lambda]
    PROXY --> DNS[Cloud Map private DNS]
    DNS --> SRV[mnemo-server]
    SRV --> EMB[qwen3-embed sidecar]
    SRV --> LLM[llm-proxy sidecar]
    LLM --> MANTLE[Bedrock Mantle]
    SRV --> DB[(Aurora PostgreSQL + pgvector)]

The ECS task runs three containers: mnemo-server on port 8080, the qwen3-embed sidecar on 8081, and an llm-proxy sidecar on 8082. That last one exists because of an upstream constraint worth knowing: mem9 reads MNEMO_LLM_API_KEY once at startup and treats it as immutable, and sends no custom headers. Bedrock Mantle needs a short-lived bearer token and a cost-attribution header. Those two facts are irreconcilable, so mnemo-server is configured with a dummy local key pointing at localhost:8082, and the proxy mints and refreshes the real bearer, injects the project header, and forwards to Mantle. mnemo-server never calls AWS directly.

AgentCore Gateway reaches the private server through a Lambda target: the Gateway invokes a VPC-attached proxy Lambda, which resolves mnemo-server over AWS Cloud Map private DNS. No public ingress anywhere in the path.

The Gateway exposes four MCP tools: add_memory, search_memories, ingest_messages, and get_ingest_job_status. Inbound auth is Amazon Cognito. I wrote up the OAuth side of this separately — Cognito is an OIDC provider, not an MCP-compliant authorization server, and closing that gap took a thin API Gateway façade implementing the RFC surfaces MCP clients expect. If the underlying spec stack is unfamiliar, I've also covered the MCP authorization RFCs in depth and how remote MCP servers on AgentCore are invoked.

One store, many workers

Here's the part I didn't anticipate. I assumed "expose MCP over OAuth" would be a single integration I'd do once. In practice, the agent workers I use fall into four classes with structurally different authentication needs, and the store has to admit all of them.

Class 1: native loopback OAuth

The easy case. Claude Code, Codex, and Kiro CLI all run on my machine and can open a loopback listener, so they follow RFC 8252 and need no server-side configuration at all:

1claude mcp add --transport http --scope user mem9 "$MEM9_MCP_FACADE_URL"
2codex mcp add mem9 --url "$MEM9_MCP_FACADE_URL"
3codex mcp login mem9

Claude Cowork belongs here too. AWS describes Cowork as a cloud agent calling local tools through MCP, and lists MCP connectors among the capabilities available to Claude Platform on AWS clients, where both Cowork and Claude Code appear as examples (I compared that platform against plain Bedrock in a separate decision tree). Because it speaks remote MCP with OAuth the way Claude Code does, it needs no server-side accommodation either — point it at the façade URL and complete the browser login once.

Class 2: hosted-redirect OAuth

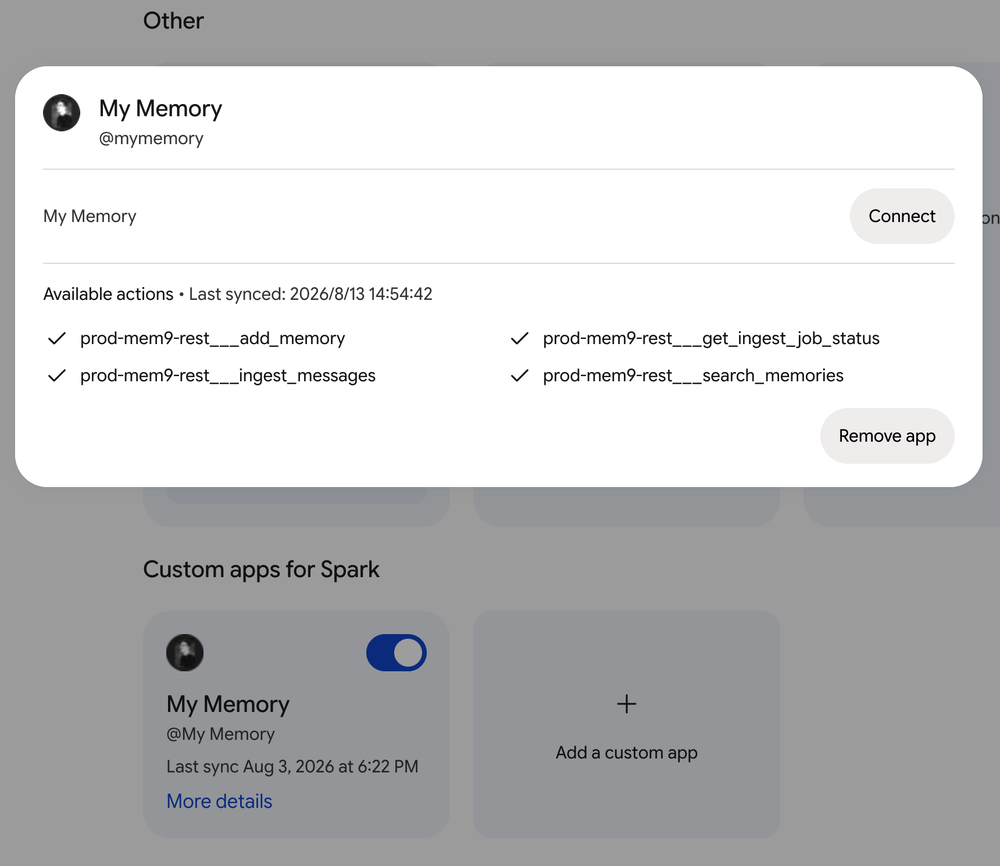

Gemini Spark is where the assumption breaks. It's a hosted agent, so there is no loopback listener — the OAuth callback goes to a fixed Google-hosted URL. A custom MCP server gets registered under Custom apps for Spark on the Spark apps page, and once connected, Spark enumerates the tools it discovered:

Those four action names are the AgentCore Gateway naming convention — <target-name>___<tool-name> with a triple underscore — so what Spark lists is precisely the Gateway's tool surface, reached through the same façade the CLI agents use.

The architectural consequence is that a hosted client's callback URL must be explicitly allowlisted server-side, which a loopback client never needs. That's why the façade carries a stage-scoped allowlist of complete callback URLs rather than accepting whatever redirect arrives:

1pnpm -C infra exec sst secret set OauthAllowedCallbackUrls \
2  '["https://existing.example.com/callback","https://new.example.com/callback"]' \
3  --stage prod

Exact-match only — no host or path wildcards, no credentials, no fragments. Hosted clients also tend to carry more OAuth state than Cognito's parameter comfortably holds, so the façade keeps the client's URL and opaque state in a nonce-bound, HMAC-signed cookie (Secure, HttpOnly, SameSite=Lax, 10-minute lifetime) and hands Cognito only a compact signed nonce.

Two caveats on this section, stated plainly: Gemini Spark is in beta and I could not find public documentation for its custom-app auth contract, so everything above is from my own working setup rather than a vendor spec. And the interactive OAuth path is deliberately read-only — more on that below.

Class 3: the stdio bridge

Amazon Quick was the surprise — and it's the product I've spent the most time inside, having previously written a deep dive on Quick Suite. Quick's web MCP integration is well documented and genuinely capable: it supports three-legged and two-legged OAuth plus Dynamic Client Registration, discovering authorization server metadata via RFC 9728. It's a textbook Class 2 client, redirecting to a fixed regional URL of the form https://<region>.quicksight.aws.amazon.com/sn/oauthcallback.

The Quick desktop app is a different MCP client in the same product. It offers a Remote connection type — but that type's only credential field is a static bearer Token. No OAuth, no PKCE, no DCR. So an OAuth-protected gateway simply cannot be added as a Remote server there.

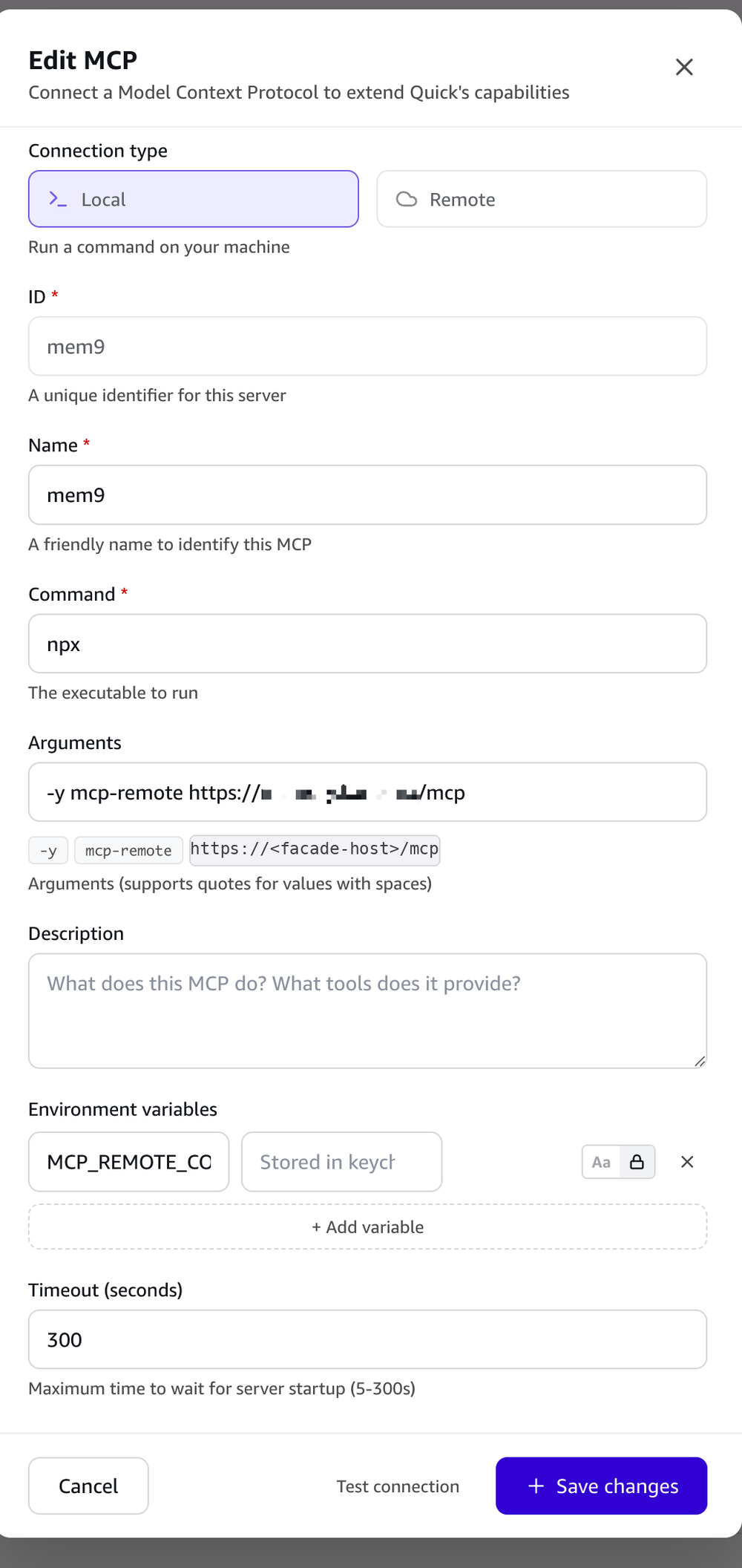

The way through is the Local connection type, which runs a command on your machine — AWS lists npx among the common Command values (desktop connectors). Point it at mcp-remote, and that local process handles the OAuth dance and bridges stdio to the remote streamable-HTTP endpoint:

A 300-second startup timeout is worth setting here, because the first run has to fetch the package and may open a browser for consent.

One more detail on that screen deserves attention: Quick desktop's Import connection type reads existing MCP configuration from Kiro, Claude Code, AIM, and Antigravity. A new worker class can inherit the wiring the code agents already have — which is the whole thesis, implemented by the vendor.

Class 4: headless machine-to-machine

The fourth class isn't an interactive client at all. Automatic transcript ingestion runs outside the agent turn, in a hook, with no browser and no user present. It authenticates with a Cognito client_credentials grant against the raw Gateway endpoint, using machine-local credentials in a gitignored file:

1# ~/.mem9-mcp.env  (chmod 600; never commit)
2export MEM9_MCP_URL="<raw AgentCore Gateway MCP endpoint>"
3export MEM9_MCP_TOKEN_ENDPOINT="https://<domain>.auth.<region>.amazoncognito.com/oauth2/token"
4export MEM9_MCP_CLIENT_ID="<cognito M2M client id>"
5export MEM9_MCP_CLIENT_SECRET="<cognito M2M client secret>"
6export MEM9_MCP_SCOPE="mem9-mcp/read mem9-mcp/write"
7export MEM9_MCP_TARGET="prod-mem9-rest"

The privilege split worth stealing

Those four classes produce one design decision I'd reuse anywhere: the interactive path and the automated path have different scopes.

The browser-login façade every human-driven client uses is read-only. Write scope lives exclusively on the M2M path used by the ingest hooks. An agent can search my memory all day through the interactive session; it cannot write to it. Writes happen only through the hook layer, which ships a bounded, filtered window on a known schedule.

The security benefit is that prompt injection in an agent session cannot poison the memory store — the session literally lacks the scope. The operational benefit is that every write flows through one auditable code path instead of N clients' varying interpretations of "remember this."

Your memory versus the vendor's memory

Worth naming explicitly: most of these products ship their own memory. Amazon Quick on desktop "builds a knowledge graph of the people, projects, and decisions relevant to you" and "retains your preferences and workflows in long-term memory" (Quick on desktop). That's a real feature and it works well.

It's also a silo. It is per-product, not portable, not exportable on my terms, and invisible to every other agent I use. Two agents each maintaining excellent private memories of the same engineer is strictly worse than both reading one shared store — the whole point is that Monday's context is available to Tuesday's different agent.

So I use both, deliberately, for different things. Vendor memory holds product-local preferences. mem9 holds the durable, cross-agent facts: decisions and their rationale, environment gotchas, hard-won constraints. The distinction that matters is which one I can still read after I stop paying.

Making code agents actually use it

This is the part I underestimated, and the part I'd most want to tell someone before they build this.

Registering the MCP server is not the hard part. Getting the agent to use it is. An agent with search_memories sitting in its tool list will mostly not call it — nothing in the conversation makes the tool salient at the moment it would help, and "check your memory first" is exactly the instruction a model drops when the user's actual request is more interesting. I shipped the server, connected four clients, and then watched them cheerfully re-derive facts that were already in the store.

Hooks are the enforcement layer. The insight that made it work is that reads and writes need completely different mechanisms.

Reads get a nudge; writes get determinism

A hook cannot force a tool call. So recall doesn't try — it runs on UserPromptSubmit and injects an instruction into the agent's context, then lets the agent use its own already-authenticated MCP connection:

1"You have a shared cross-session memory via the mem9 MCP server " +
2  "(tools: search_memories, add_memory). Before starting substantive work on " +
3  "this request, call search_memories with a natural-language query (limit 5-10, " +
4  "no agent_id) to recall any relevant past context; use the relevant hits and " +
5  "ignore the rest. ..."

That design has a property worth naming: the recall hook makes no network call and holds no credentials. It reuses the OAuth session the client already established, so it needs zero auth code and cannot fail a session.

Writes are the opposite. I deliberately do not rely on the agent remembering to persist anything, because that's the same unreliable behavior that made recall need a nudge in the first place. The ingest hooks call mem9 themselves, outside the agent turn, on fixed lifecycle events:

 1{
 2  "hooks": {
 3    "UserPromptSubmit": [
 4      { "hooks": [ { "type": "command",
 5                     "command": "$HOME/.claude/hooks/mem9/run.sh recall",
 6                     "timeout": 5 } ] }
 7    ],
 8    "Stop": [
 9      { "hooks": [ { "type": "command",
10                     "command": "$HOME/.claude/hooks/mem9/run.sh ingest stop",
11                     "timeout": 30 } ] }
12    ]
13  }
14}

PreCompact and SessionEnd follow the same shape with ingest precompact and ingest sessionend. PreCompact matters more than it sounds: it's the last chance to capture a long session before the context is summarized away.

Nudge for reads, determinism for writes. This is also why the write path is the one holding M2M credentials — it's machinery, not a conversation.

What I learned wiring three clients

One implementation lives in my dotfiles and is symlinked into three agent homes (~/.claude/hooks/mem9, ~/.codex/hooks/mem9, ~/.kiro/hooks/mem9), because maintaining three copies of this logic would guarantee three different behaviors. The grit that made it reliable:

Nudge once per session, not every turn. A session-scoped marker file gates it. Injecting the instruction on every prompt burns context and — worse — trains the agent to ignore a block of text it has seen twenty times.

Skip trivial prompts. Anything under 12 characters is a "yes", a "/clear", or a typo, and doesn't warrant a memory search.

The recall hook does double duty. Claude Code hands you a transcript_path, so ingestion can read the real conversation. Codex and Kiro CLI don't. So recall also caches each prompt to a 0600 file, which the Stop hook consumes and unlinks, pairing it with the final assistant message. One hook, two jobs, and no second source of truth.

Best-effort or bust. Every hook exits 0 — missing config, unparseable stdin, network failure, node not installed. Timeouts are tight: 5s for recall, 30s for ingest. A memory layer that can wedge your agent session is strictly worse than no memory layer, and you will not be in a forgiving mood the first time it happens mid-task.

The response channel differs per client. Claude Code expects a hookSpecificOutput JSON envelope; Kiro injects successful userPromptSubmit stdout directly into context. Same recall text, two formats, normalized in one small module.

Two client-specific traps. Codex requires a one-time trust review — the hooks silently do nothing until you approve them in /hooks. And Kiro's hooks are per-agent: switching to a different custom agent quietly loses them, because there's no universal global-hooks file.

Tag write provenance. Each client writes with agent_id of <client>-<project>, so months later I can tell which agent recorded a fact and in what repo. That turned out to matter more than expected when a memory looked wrong and I needed to know where it came from.

What actually gets uploaded

This is where the sovereignty argument would quietly collapse if I were careless, so the ingest filter is deliberately narrow. Only user and assistant text in a bounded window is sent — up to 4 messages / 20 KB on Stop, up to 12 messages / 120 KB on PreCompact. Stripped before transmission: tool calls, tool results, progress updates, startup instructions, sidechains, meta entries, and previously injected <relevant-memories> blocks.

That last exclusion matters more than it looks. Without it, recalled memories get re-ingested as if they were new observations, and the store slowly fills with echoes of itself.

What it costs to run

Sovereignty has a bill, and it is mostly fixed: roughly $135–160 per month before model usage, dominated by an always-on arm64 Fargate task and the Aurora Serverless v2 capacity floor. That's an architecture estimate as of August 2026, not a quote. For a single-operator deployment the always-on task is the obvious line item to attack first.

The operational cost is the more interesting one. Two lessons from running it:

Memory needs garbage collection. Left alone, a memory store accumulates contradictions, near-duplicate fragments, and facts that were true in June. A weekly Fargate task clusters existing memories, uses an LLM to detect contradictions and staleness, and applies at most 20 mutations per run. It defaults to report-only and never executes a DELETE — it can merge fragments, archive the strictly older side of a contradiction, or mark a fact stale. Deletions require explicit approval routed through Slack. Automating deletion of your own knowledge base is a decision to make on purpose, not by default.

Concurrent writes will find your weak spot. The consolidation job's merge step reads a surviving memory, then rewrites it with the merged content. It guarded that rewrite with an If-Match version header — which upstream treated as advisory, logging a warning and applying the write anyway. An ingest arriving between the read and the write was silently overwritten, and the skip counter never moved. The fix was to make If-Match authoritative so a stale version returns 412 rather than a warning. If you build on someone else's server, verify that its optimistic-concurrency headers actually enforce anything.

Lessons

Take "own the data" literally and let it design the system. Every genuinely load-bearing decision here — Postgres over TiDB, a self-hosted embedding sidecar, no public ingress — came from refusing to soften one of the four constraints. The awkward one, embeddings, is where the requirement earned its keep.

Expect an auth taxonomy, not an integration. The single most useful mental shift was to stop thinking "add MCP clients" and start classifying workers by how they can prove who they are: loopback, hosted redirect, local bridge, or machine credentials. Each class needs different server-side accommodation, and that shape is stable across vendors.

Nudge for reads, be deterministic about writes. Availability of a tool is not adoption of a tool. Assume the agent will forget to search, and inject a once-per-session reminder; assume the agent will forget to save, and take the decision away from it entirely with a lifecycle hook that writes on its own.

Split read and write scope by transport. Read-only for interactive sessions, write scope only on the headless path. It's cheap, it neutralizes a class of prompt-injection risk, and it funnels every write through one auditable path.

Filter what you ingest, then filter it again. The bounded window and the stripped <relevant-memories> blocks are what keep the store from becoming a transcript archive that echoes itself.

The result is unglamorous and works: five agents, three of them writing automatically, one memory layer, entirely inside my own account — and I can SELECT it, export it, or drop it whenever I want.
